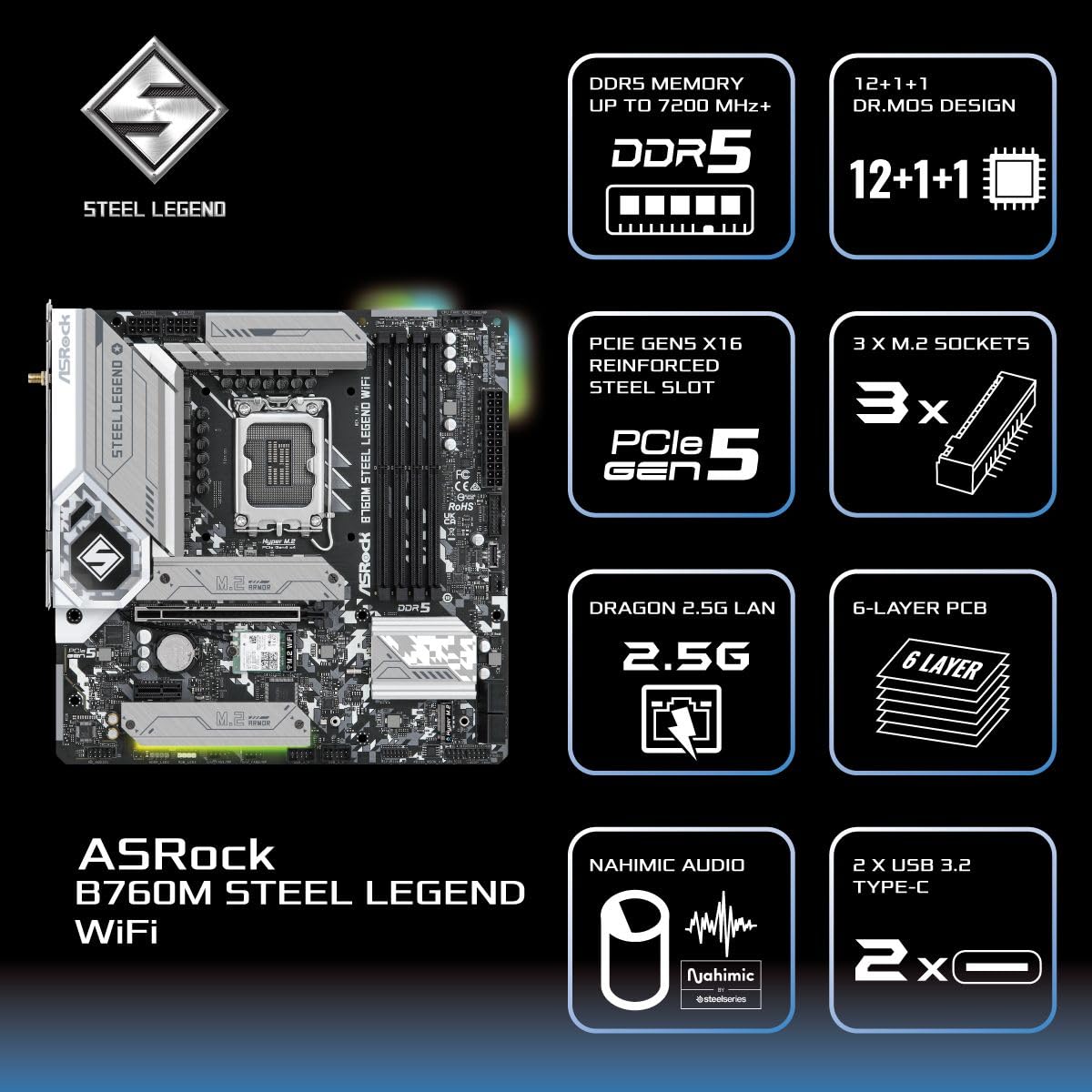

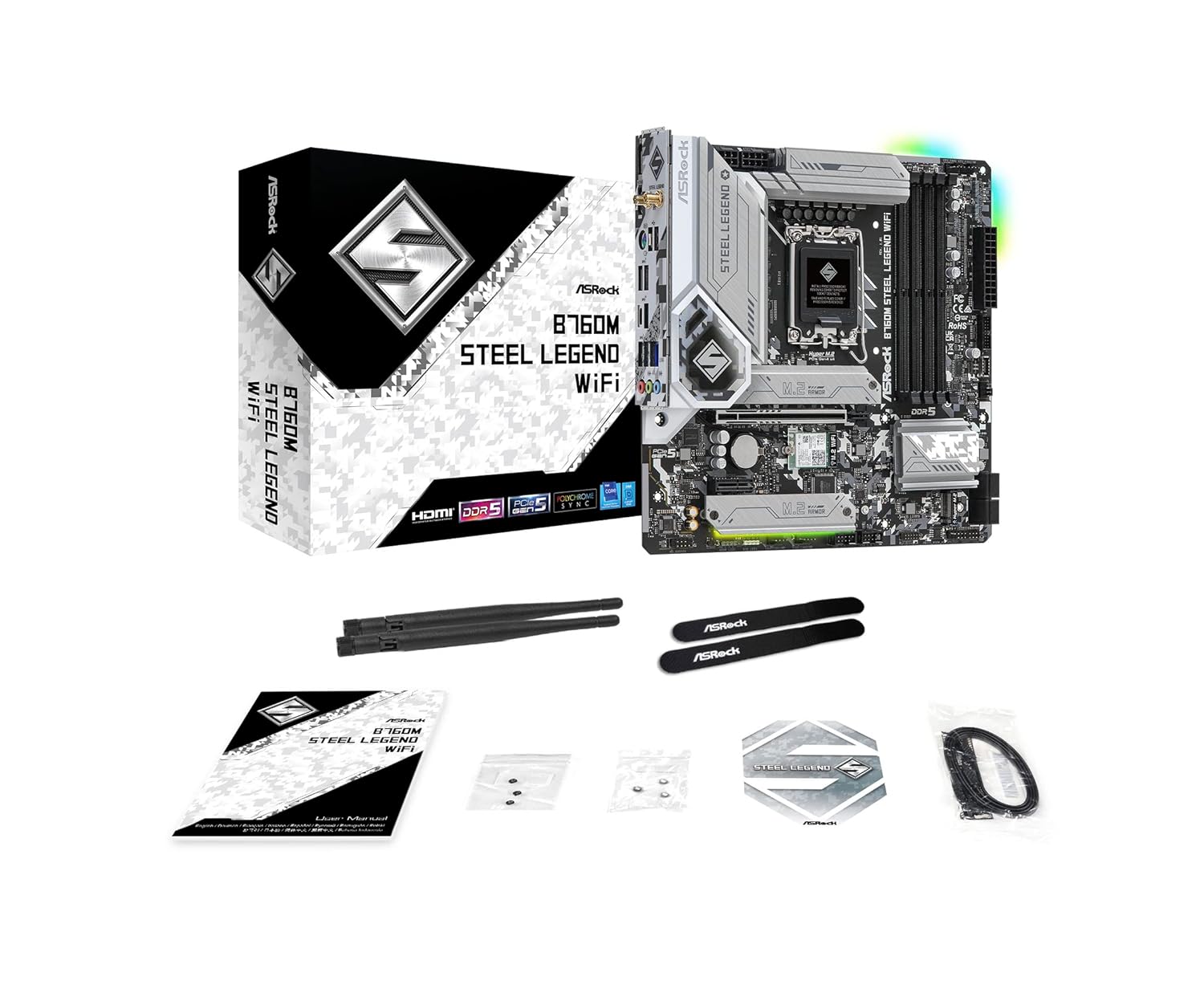

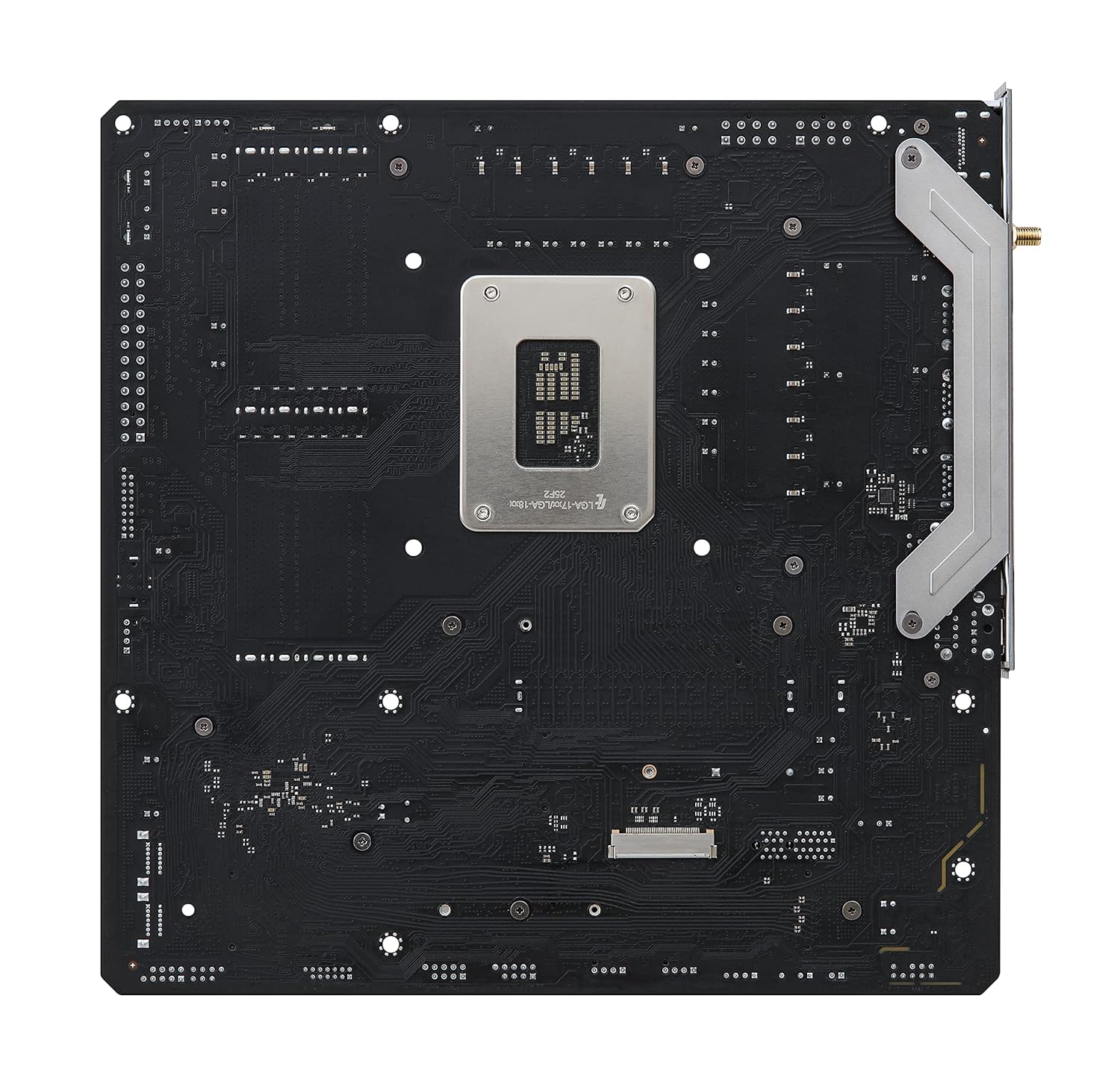

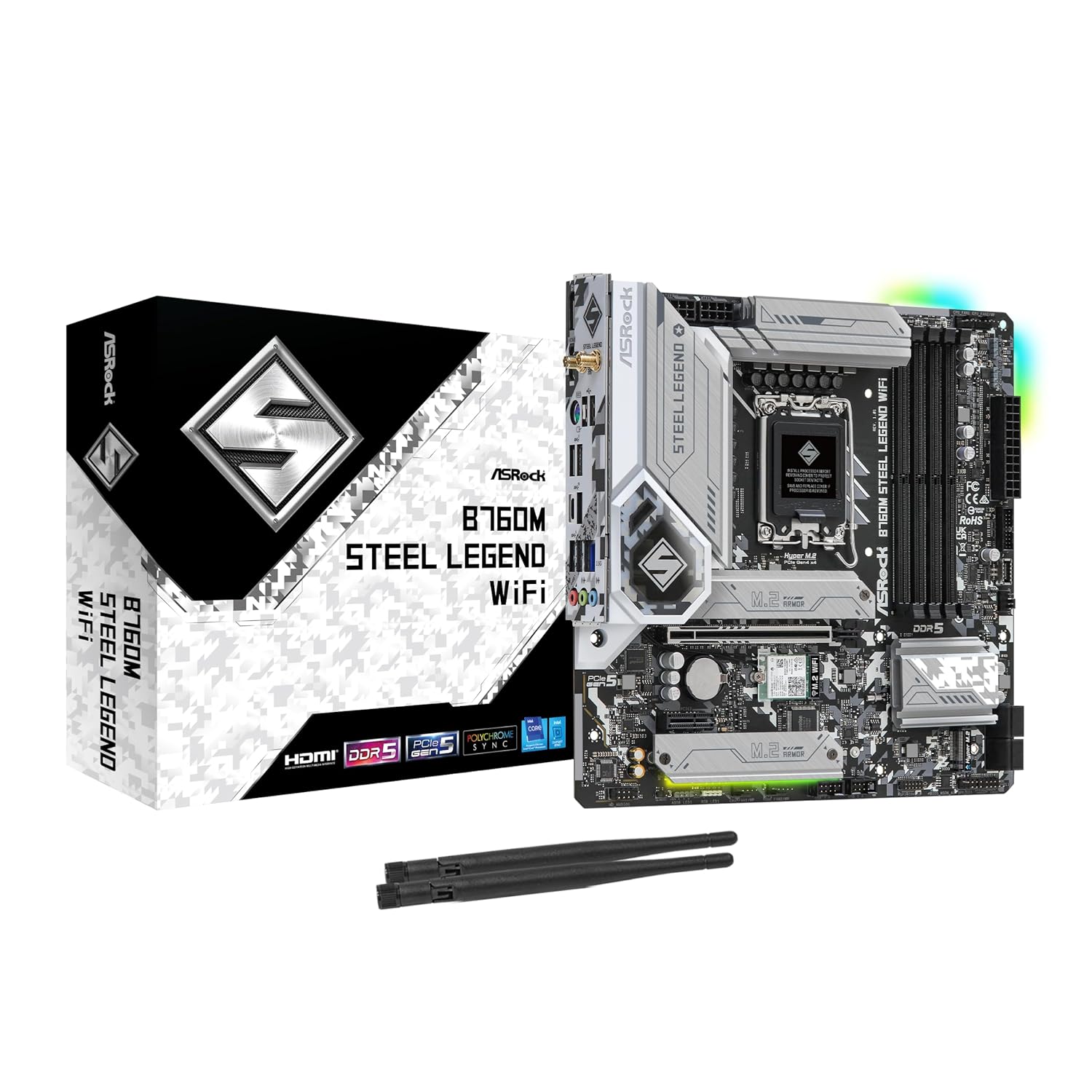

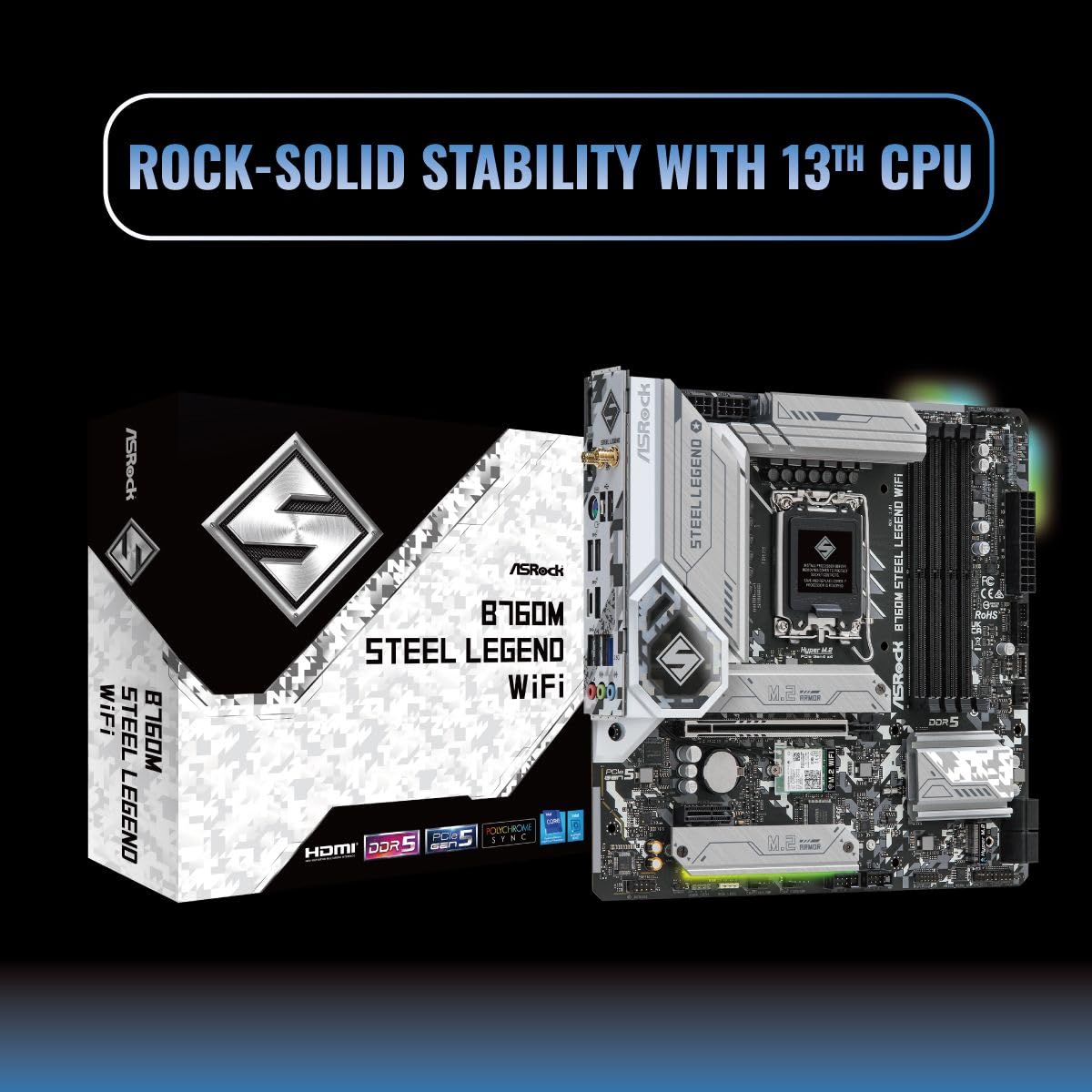

ASRock B760M Steel Legend WiFi Motherboard, Intel 12th and 13th Generation CPU (LGA1700), B760 Chipset, DDR5 Micro ATX Motherboard

Price: ₹20,000 - ₹15,599.00
(as of May 12, 2025 21:10:00 UTC – Details)


Socket: LGA1700 *Intel 12th and 13th generation CPU.
Chipset: Intel B760
Form Factor: Micro ATX
Memory Specification 1: 4 x DDR5 DIMM Slots
Memory Specifications 2: Dual Channel DDR5 Memory Technology.
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
– Max capacity of system memory: 128GB
– Supports Intel Extreme Memory Profile (XMP) 3.0
Power Phase: 12+1+1 Power Phase, Dr.MOS for VCore+GT.
GPU Function: Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only
with processors which are GPU integrated.
– Intel Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution
Up to 8K 60Hz / 5K 120Hz
Graphic Output: HDMI, DisplayPort, eDP
PCIE: 1 PCIe 5.0 x16
PCIe X1: 1 PCIe 4.0 x1
OC:
SLI:
CrossFire:
Sound Function: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

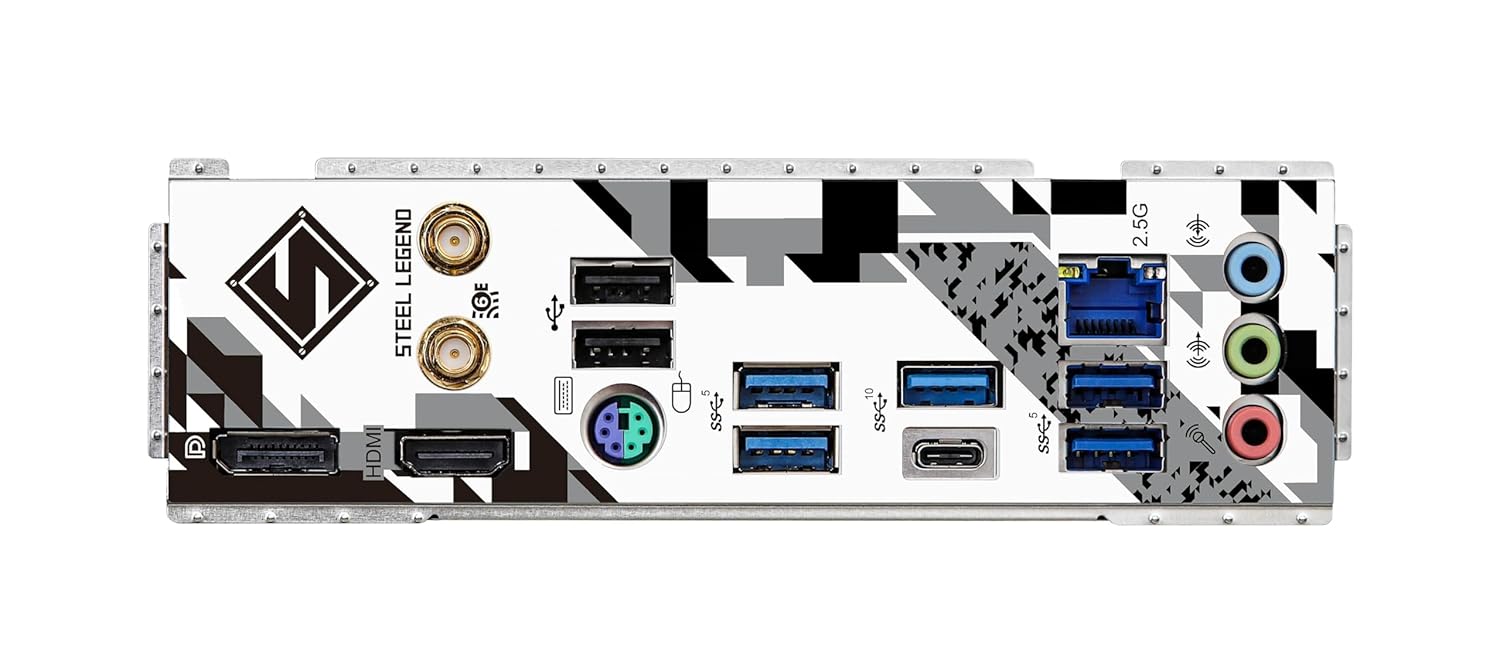

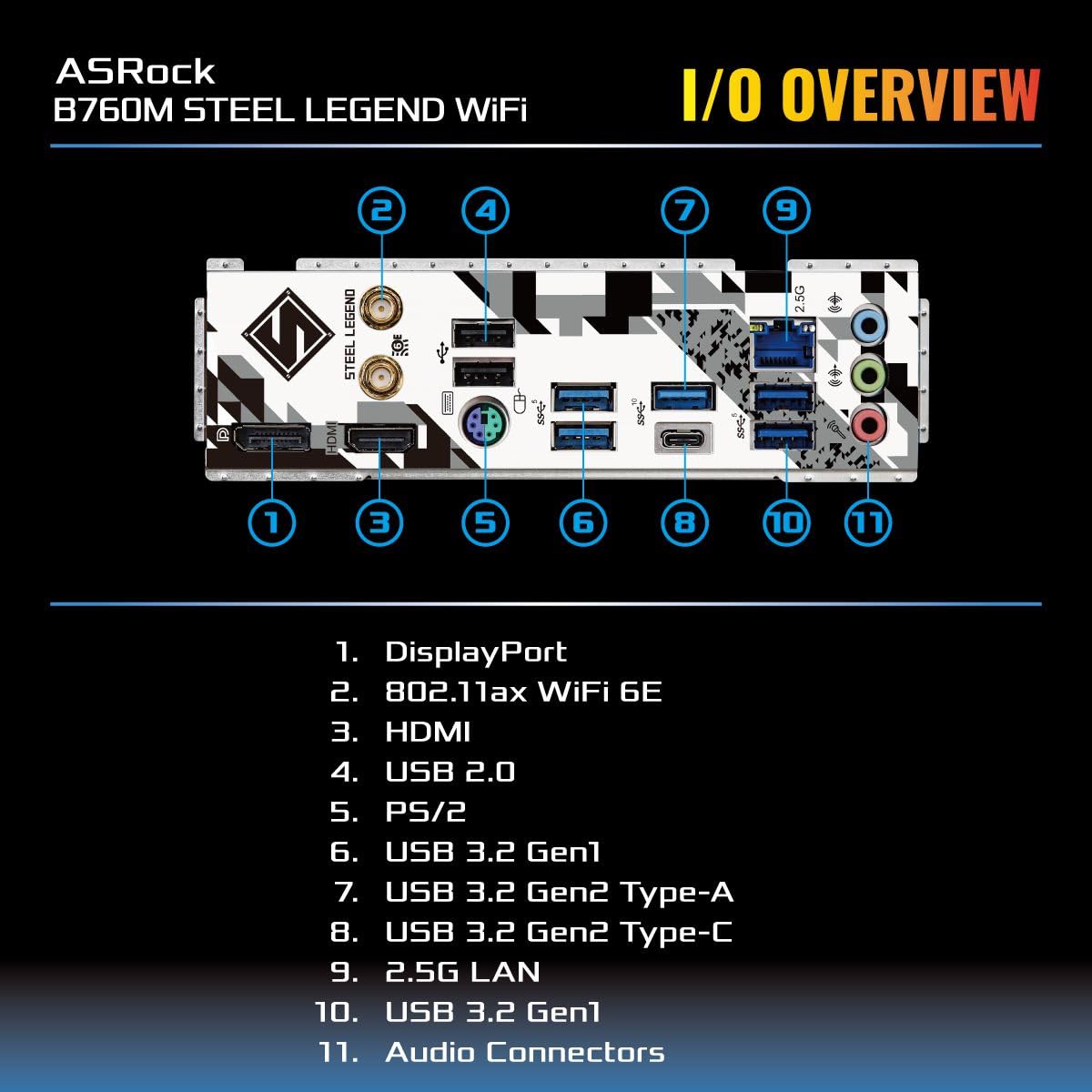

USB 2.0: 6 USB 2.0 (2 Rear, 4 Front).
USB 3.2 Gen1 (USB 3.0) 5Gb/s 6 USB 3.2 Gen1 (4 Rear, 2 Front)
USB 3.2 Gen2 / Thunderbolt 310Gb/s 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear)
【USB3.2Gen2x2 Type-C 20Gb/s】-
【Thunderbolt 4(USB4.0)】-(br) 【Thunderbolt 4 Header】-(br) 【SATA3】4
M.2 Slots: 3 Hyper M.2 (PCIe Gen4 x 4).
【M.2 Slot Heat Sink】-
M.2 Wifi: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT
Wireless LAN (Wi-Fi): 802.11ax (WiFi 6E) + Bluetooth
LAN: Dragon 2.5 G LAN
LED: Polychrome SYNC
Technical Standards Compliance Mark; Frequency band (5 GHz): W52 (5180 – 5240 MHz), W53 (5260 – 5320 MHz), W56 (5500 – 5720 MHz); Frequency band (2.4 GHz): 2412 – 2472 MHz; *Because of the regulatory conditions in different countries are different, Wi-Fi 6 GHz. Not activated. When Windows Update and software updates are available, (in supported country).
Supports Intel 12th and 13th Generation Core Processors
Classic ASRock Steel Legend Series
Equipped with Wi-Fi for durability
Supports WiFi 6E (802.11AX)
High-density power connector, made by Nikikon with 12K capacity (VRM only)
