MSI MAG B760M Mortar WiFi II Motherboard, Micro-ATX – Supports Intel 14th/13th/12th Gen Core Processors, LGA 1700, DDR5 Memory Boost 7800+MHz/OC, PCIe 5.0 x16, M.2 Gen4

Price: ₹33,999 - ₹20,019.00
(as of May 14, 2025 12:48:30 UTC – Details)

From the manufacturer

MAG B760M MORTAR WIFI II

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MAG B760M MORTAR WIFI II

Unite as One

The MAG B760M MORTAR WIFI II is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all.

Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 12 Duet Rail Power System with 75A DrMOS 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7800MHz OC) 1 x PCI-e 5.0 x16 slot Lightning Gen4 M.2 & M.2 Shield Frozr USB 3.2 Gen 2×2 Type-C (20Gbps) 7.1 HD Audio with Audio Boost Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3

Supports Intel Core 12th & 13th Gen Processors

The MAG B760M MORTAR WIFI II motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Micro-ATX Socket Type: LGA 1700 Chipset: Intel B760

12+1 Duet Rail Power System with 75A DrMOS

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760M MORTAR WIFI II is able to sustain heavy CPU power loads to support system-demanding work settings: 1. Digital PWM IC 2. 12-Phase Duet Rail CPU Power (75A DrMOS) 3. 1-Phase GT Power 4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7800+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.

1 x Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot (primary slot with Steel Armor) 1 x PCIe 3.0 x4 slot

Gen4 M.2 Connectors

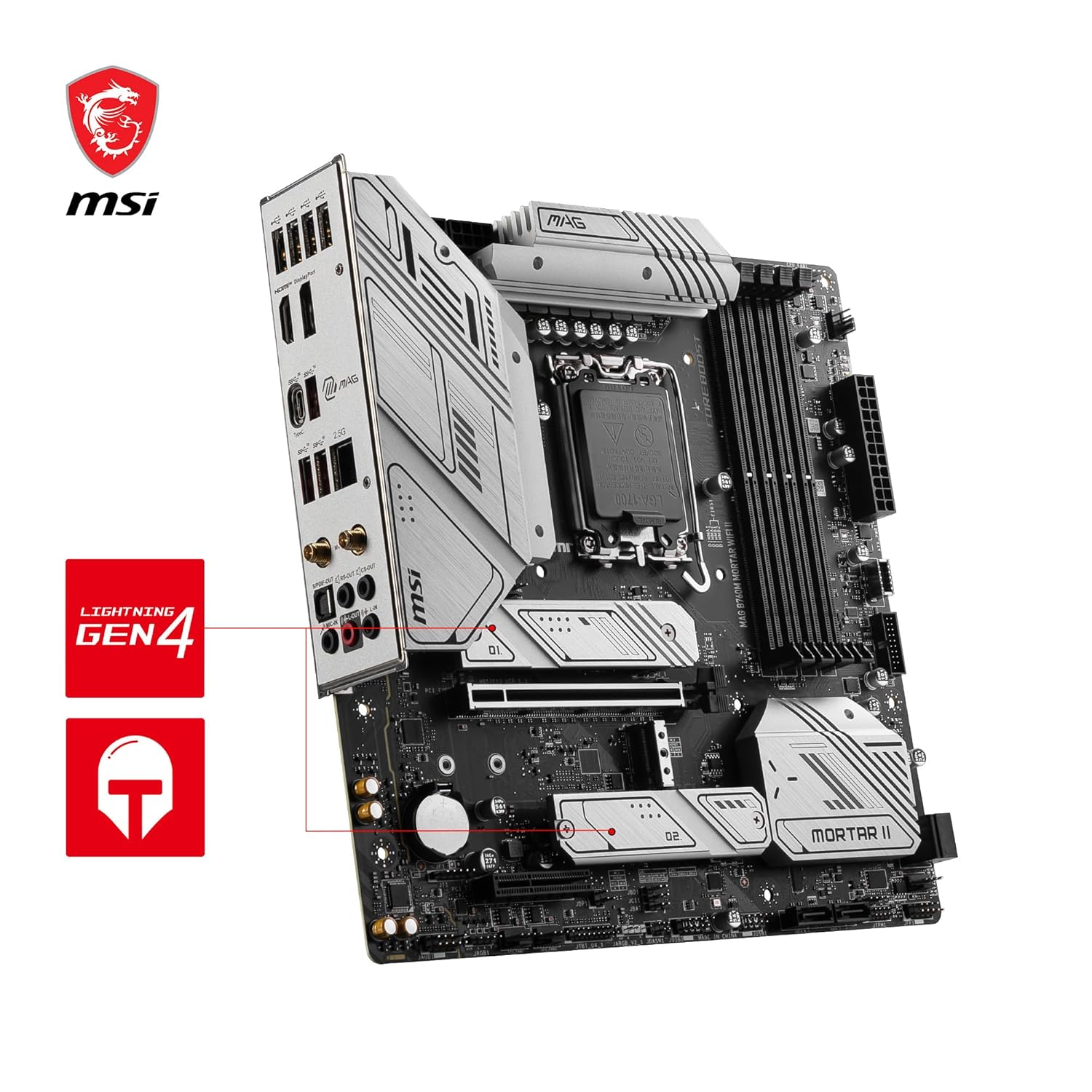

The MAG B760M MORTAR WIFI II motherboard features MSI’s Gen4 M.2 slots: 3 x Gen4 x4 64Gbps slots* *2 with M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.3

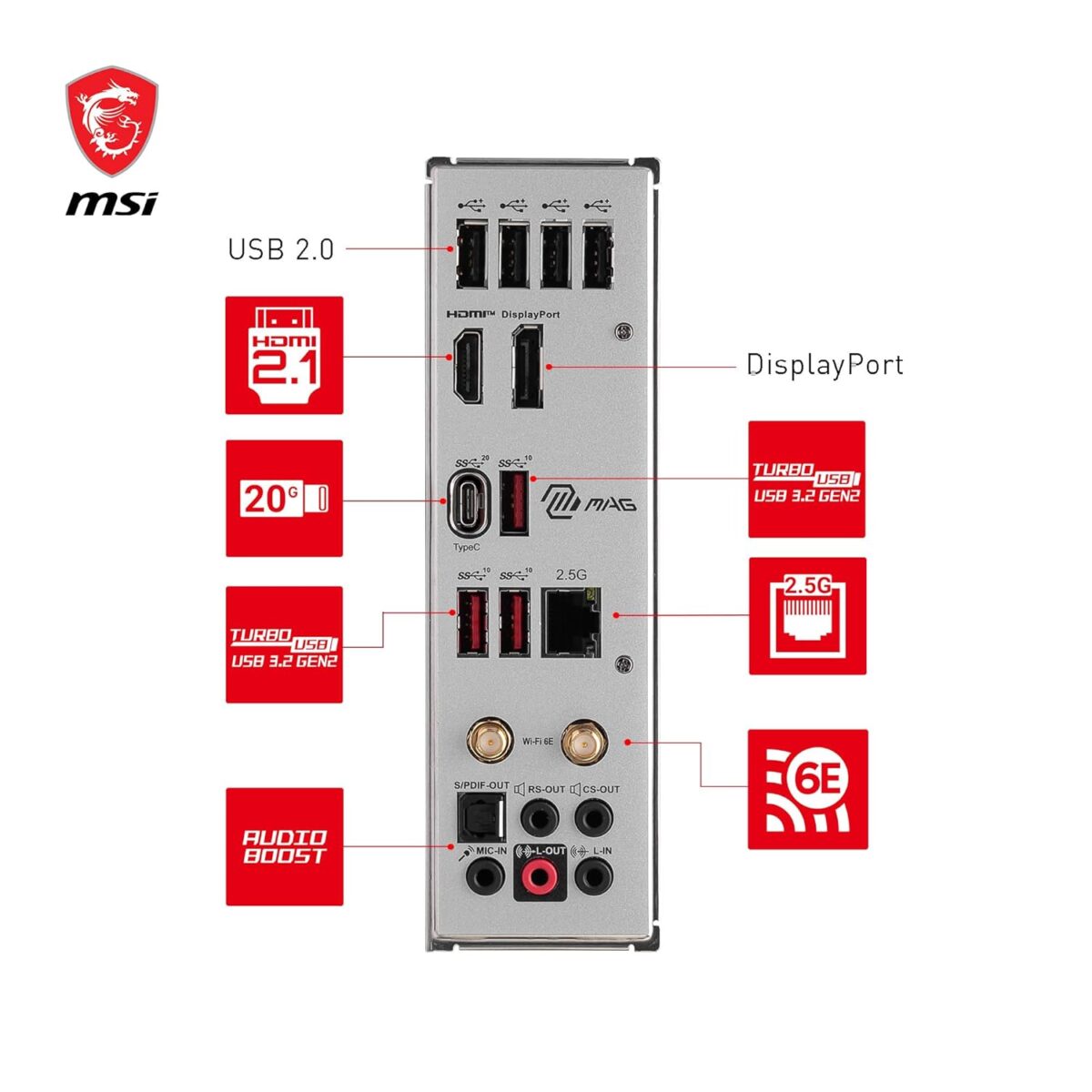

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

Add to Cart

Customer Reviews

4.6 out of 5 stars 25

4.4 out of 5 stars 43

4.2 out of 5 stars 55

—

Price

₹20,019.00₹20,019.00
— no data

— no data

— no data

MSI Gaming Series
MAG MAG MAG MAG

Form Factor
Micro-ATX Micro-ATX Micro-ATX ATX

VRM
12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS

DIMM Slots
4 x DDR5 (7800+MHz/OC) 4 x DDR5 (7000+MHz/OC) 4 x DDR5 (7000+MHz/OC) 4 x DDR5 (7000+MHz/OC)

PCI-E x16 Slots
1 x 5.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 / 1 x 3.0

M.2 Slots
3 x Gen4 x4 2 x Gen4 x4 2 x Gen4 x4 3 x Gen4 x4

M.2 Shield Frozr
2 x Single-sided 1 x Single-sided 2 x Single-sided 3 x Single-sided

Audio
8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost

LAN
Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN

WiFi & Bluetooth
Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3

Supports Intel Core Next-gen / 13th Gen / 12th Gen, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
