Product Description

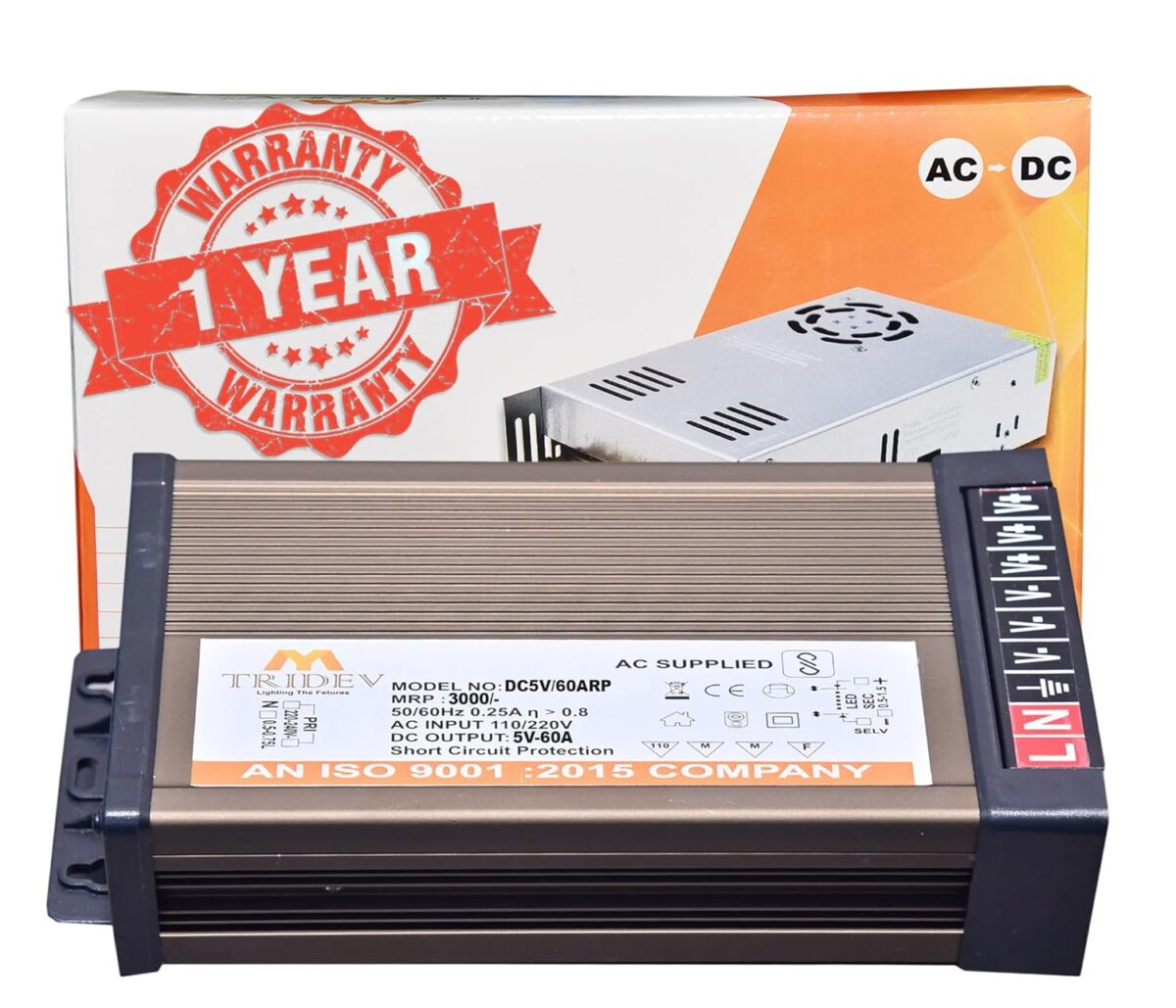

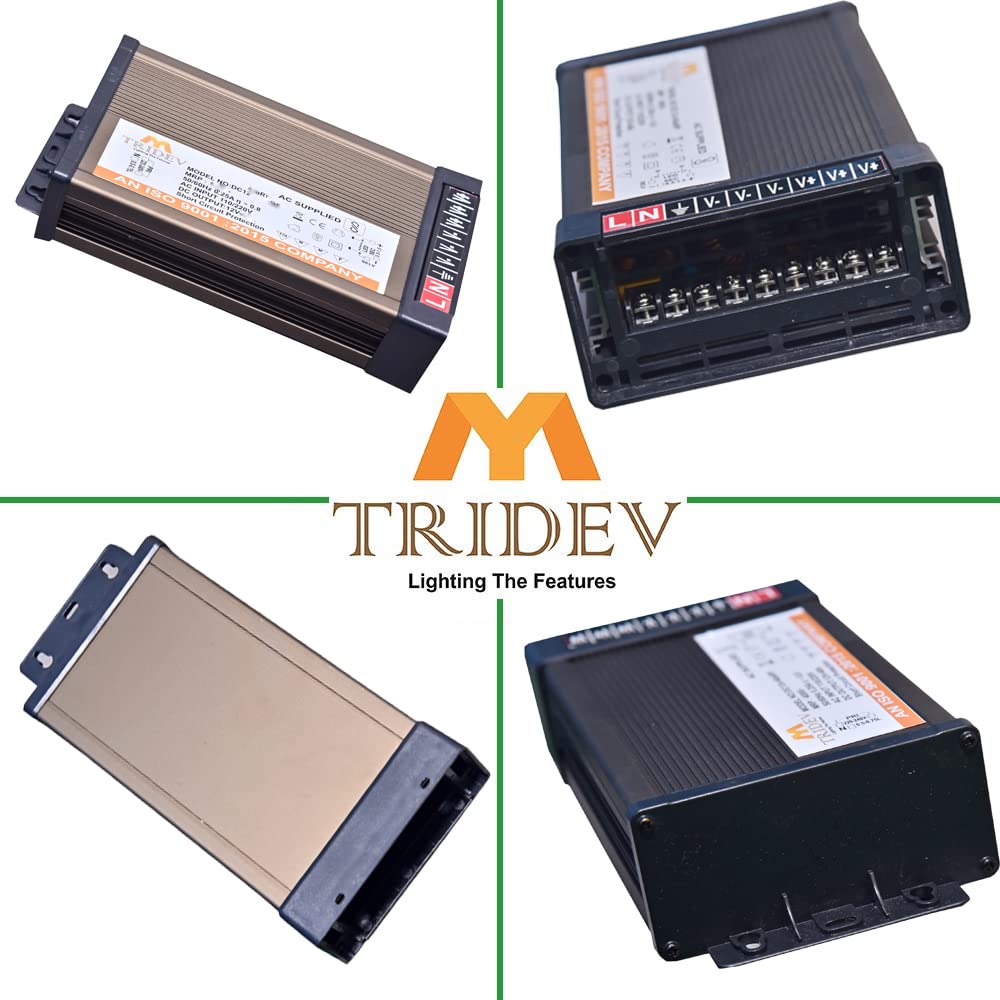

5VOLT 60AMPS 300WATTS SWITCHING POWER SUPPLY
Specifications :-
Input: AC110V/220VOutput: DC 5V 60AOutput Power: 300WFrequency: 50/60HzStorage Temperature: -20~60 degreesScrew Terminal Number: 9Fix Screw Hole Diameter: 2.5mm(0.1 inch)Material: Metal, Electronic PartsSize: 21cm x12cm x 5cm(L*W*H)Main Color: Silver ToneNet Weight: 720G
Kindly note
We suggest the max use of power should be no more than 80% of the full loads, other wise, the power supply’s spanlife will be shortened. We recommend you to use this 5V 60A 300W power supply to power devices less than 200W.110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for INDIA
Superior Safety
Built-in safeguards to protect against over voltage, over current, overheat, short-circuit, which will provide ultimate protection for you and your devices.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference.
Three Output Channels
With three independent output channels, it can power more devices. The maximum output of each channel can reach 60A 300W. Total output power of the three channels is 60A 300W.
Intelligent Temp control
It comes with built-in cooling fan and temperature detector. Cooling fan will automatically run when the inner temperature reaches 113°F (45℃), which makes heat dissipation more efficient and silent.
HOW TO USE POWER SUPPLY
Input wire has to be connected L & N point, if there is an earthing wire then you can also use that.Check whether the led light on the right side is on.Put v- negative wire at the output point (wire color can be black), then you put positive wire on v+, (the color of the wire can be red)
Connection Instruction
L: Live wire
N: Negative wire
+V: DC power output “+”
-V: DC power output “-“
Kindly Notes:-
High Voltage inside ,do not remove the cover. Qualified service personnel onlyIn-door use only, for this switch power supply is not waterproof110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 220V for india.The power supply fan does make a noise and the speed of the fan is load based. So the higher the load, the faster the fan runs, the louder the noiseExternal power supply round hole mesh heat vents, in the range of 50cm within the outlet Do not place other flammable items.5 cm in the product range not place other items, to ensure that the power supply has good thermal environment, to ensure safety.Please accurately calculate the load power, do not overload. When the power is working, do not touch the case.Do not short-circuit output if no output, please use off one minute re-energized.Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.Professional installation of qualified electrician is highly recommended.
Universal switching mode power supply. Input: AC 110V / 220V, 50 / 60Hz ; Output: DC 5V, Max 60A, 300W. The default output voltage is 5V DC, but it can be regulated by 10%, from 4.5V to 5.5V. Three sets of output channels available.
General protection: each output has independent PTC fuse and Power Supplyindicator, when problem occurs, only affect the independent output, other outputs still working
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control , etc
