TECHTONICS Raspberry Pi Pico (Latest & original) Microcontroller Mini Development Board, Based on RP2040 Chip, 264KB of RAM, and 2MB of onboard Flash memory Dual-core Arm Cortex M0+ Processor

Price: ₹1,299 - ₹750.00
(as of May 08, 2025 00:42:49 UTC – Details)

Product Description

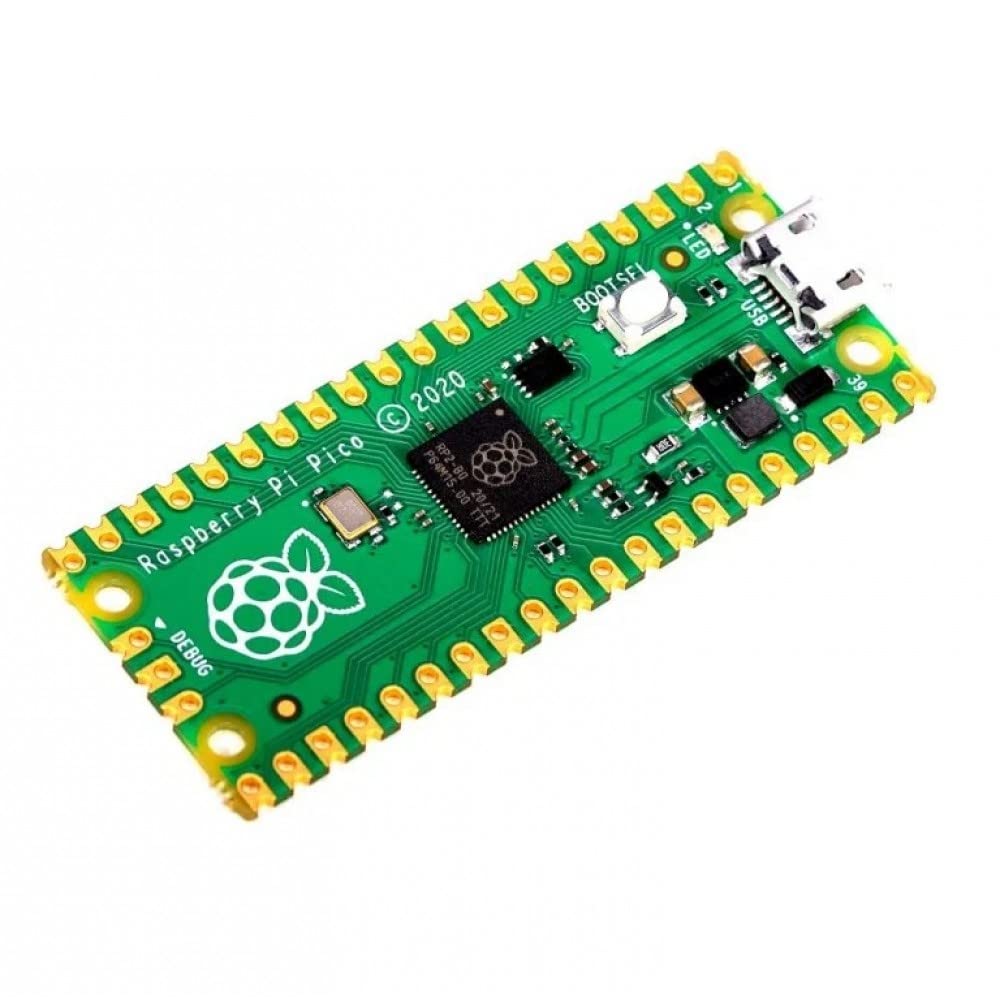

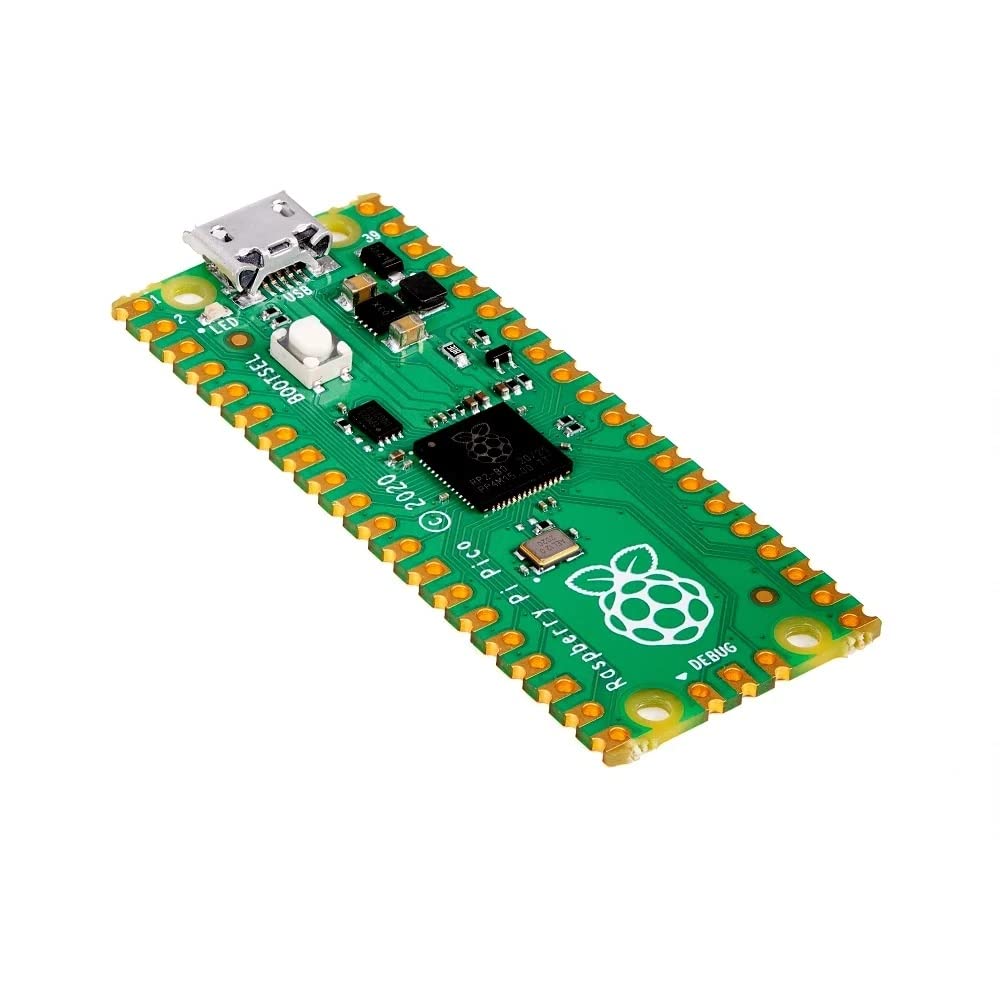

Raspberry Pi Pico (Latest & original)

Raspberry Pi Pico is the low cost and smallest size development board from Raspberry Pi Foundation ever. On the technical side, it is equipped with RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller.

The RP2040 is supported with both C/C++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product-option to start with.

Specifications:

Model Raspberry Pi PICO Operating Voltage (VDC) 1.8 ~ 5.5 Processor RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi Interface 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels RAM 264 KB GPIO 26 Pins Clock Speed 133 MHz On Board Ports Micro-USB 5V/2.5A DC Power Input Port Operating Temperature Range -20 to 85 (°C) Length (mm) 51 Width (mm) 21 Height (mm) 4

RP2040 microcontroller chip designed by Raspberry Pi. Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory. The castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support. Drag-and-drop programming using mass storage over USB.
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels. Accurate clock and timer on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
