Verilux® PC PWM Fan Hub CPU Cooling HUB 10 Port 12V 4 Pin Fan PWM Splitter Splitter

Price: ₹786 - ₹510.00
(as of May 08, 2025 17:47:24 UTC – Details)

Product Description

PC PWM Fan Hub

1 dedicated RED CPU interface for CPU fan with extra 9 interface with PWM function.

Expand 4-pin fan interfaces

For 12V 4-Pin 3-Pin fans, it cam start up to 10 fan channels simultaneously – addressing the lack of motherboard fan interfaces.

Convenient Usage

Adjustable 4-pin fan speed with fixed 3-pin fan speed after inserting due to no PWM function

10 Simultaneous Working Channels

10 channels work at the same time to eliminate the need for a separate fan control by using the fan port on a motherboard.

Double-Sided Adhesive

Has efficient EVA double-sided adhesive at the back of the hub.

Easy Installation

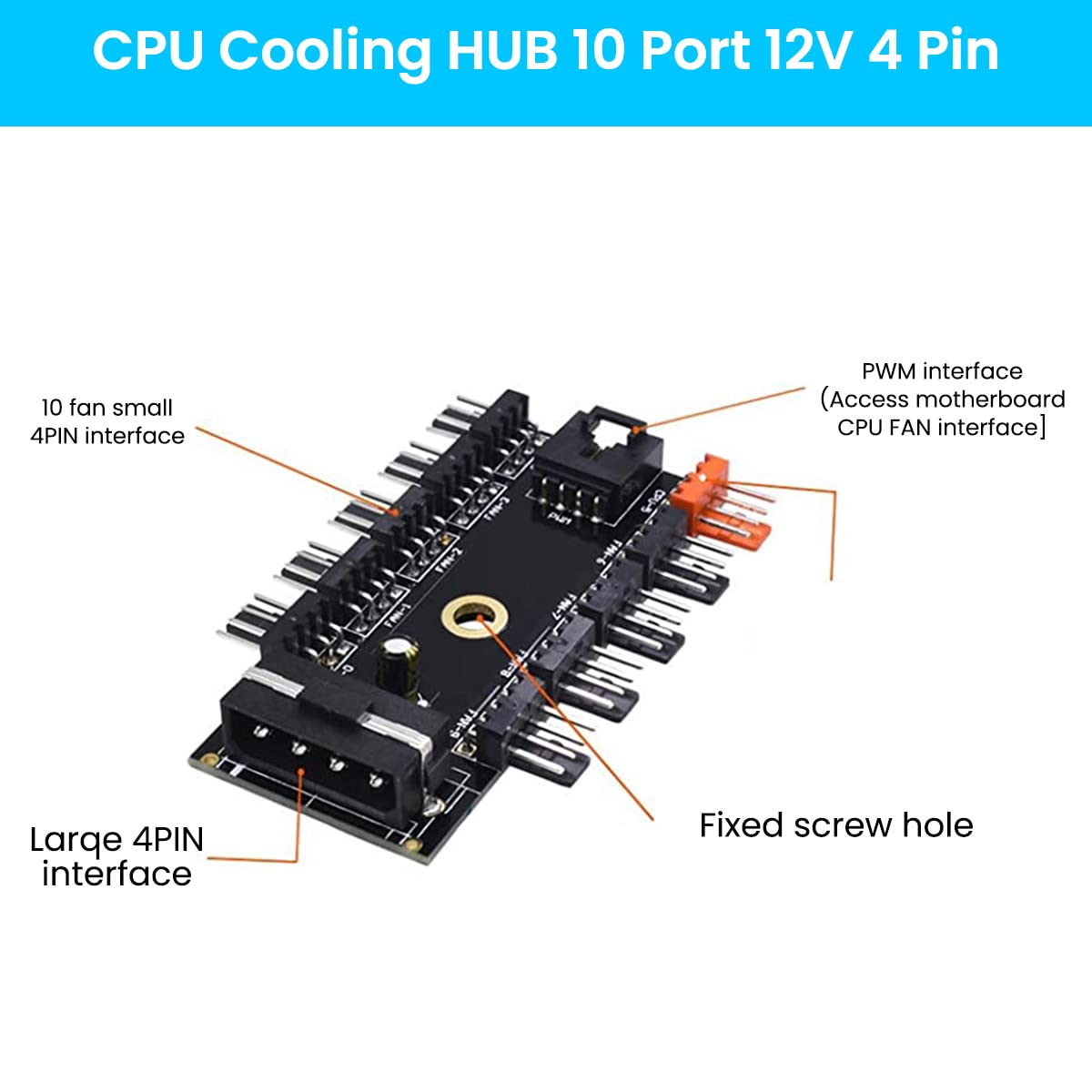

The adhesive can be easily fixed to a flat place – also has a fixing screw hole in the middle of the PCB to fix a chassis’ part.

1

The speed of the fan connected to the red fan port on this board is controlled by the computer’s operating system and NOT manually controlled.

2

The other 9 black fan ports CAN NOT be adjusted in speed. Because one operating system can only control speed of one fan.(The red Port)

3

Theoretically system can control the fan speed connecting with the red port. The motherboard can read the RPMs of the fan that’s plugged into the red port.

4

The CPU Port (the red port) would be the only one that could get controlled by the operating system and then the remaining black ports would just copy the power level of what the red port is at.

The Operation

How it works

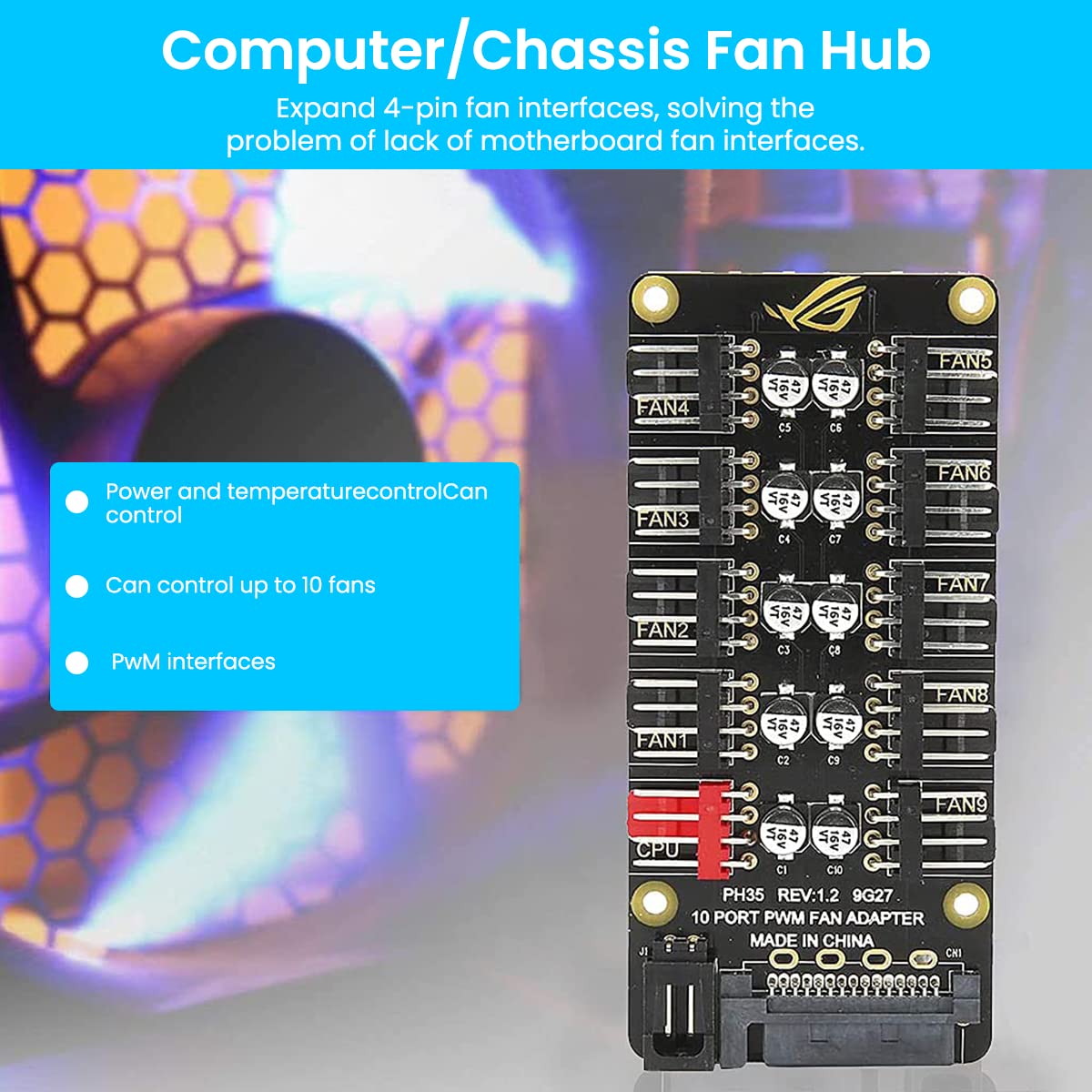

Computer&Chassis Fan Hub

[EXPAND 4-PIN FAN INTERFACES]: Solving the problem of lack of motherboard fan interfaces. Designed for 12V 4-Pin 3-Pin fans, support simultaneous starting at most 10 channel fans. 10 way 4-pin PWM fan power supply extension hub, it provide a better power supply solution for atx PC computer case internal motherboard cooling fans & cpu fans.

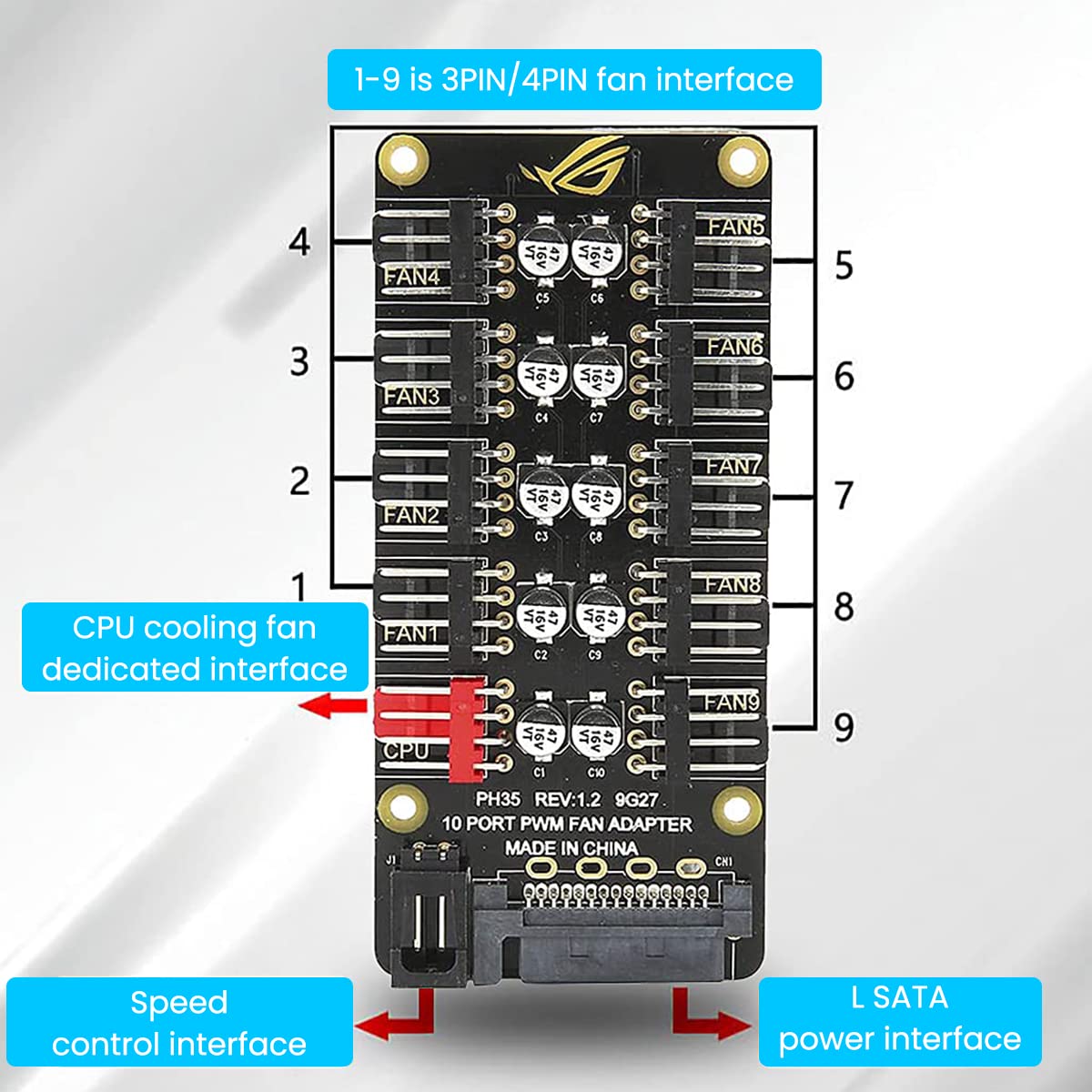

[PC PWM FAN HUB]: In the hub interfaces, the RED CPU interface is the CPU fan dedicated interface (with speed detection function). Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal (Note: all fans can only operate at the same speed).
[SCOPE OF USE]: Plug-n-Play, easy to use. For both 4-Pin and 3-Pin fans. Please note 4Pin fan speed can be adjusted by temperature control. 3Pin fan can also be used, but because 3Pin has no PWM function, it is at fixed speed after inserting. Support 4-pin and 3-pin pc case fans cable. Suitable for CPU or computer case fan.

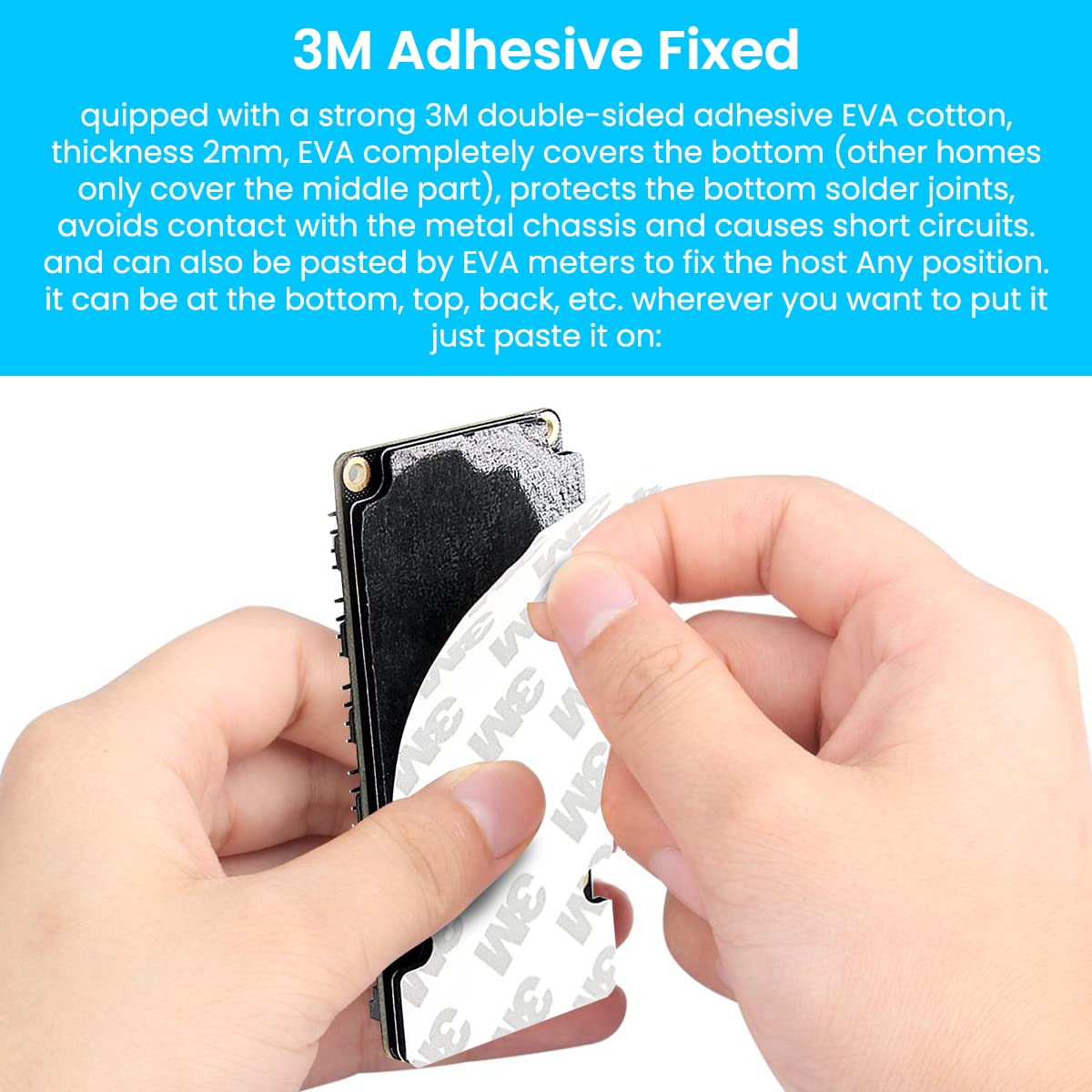

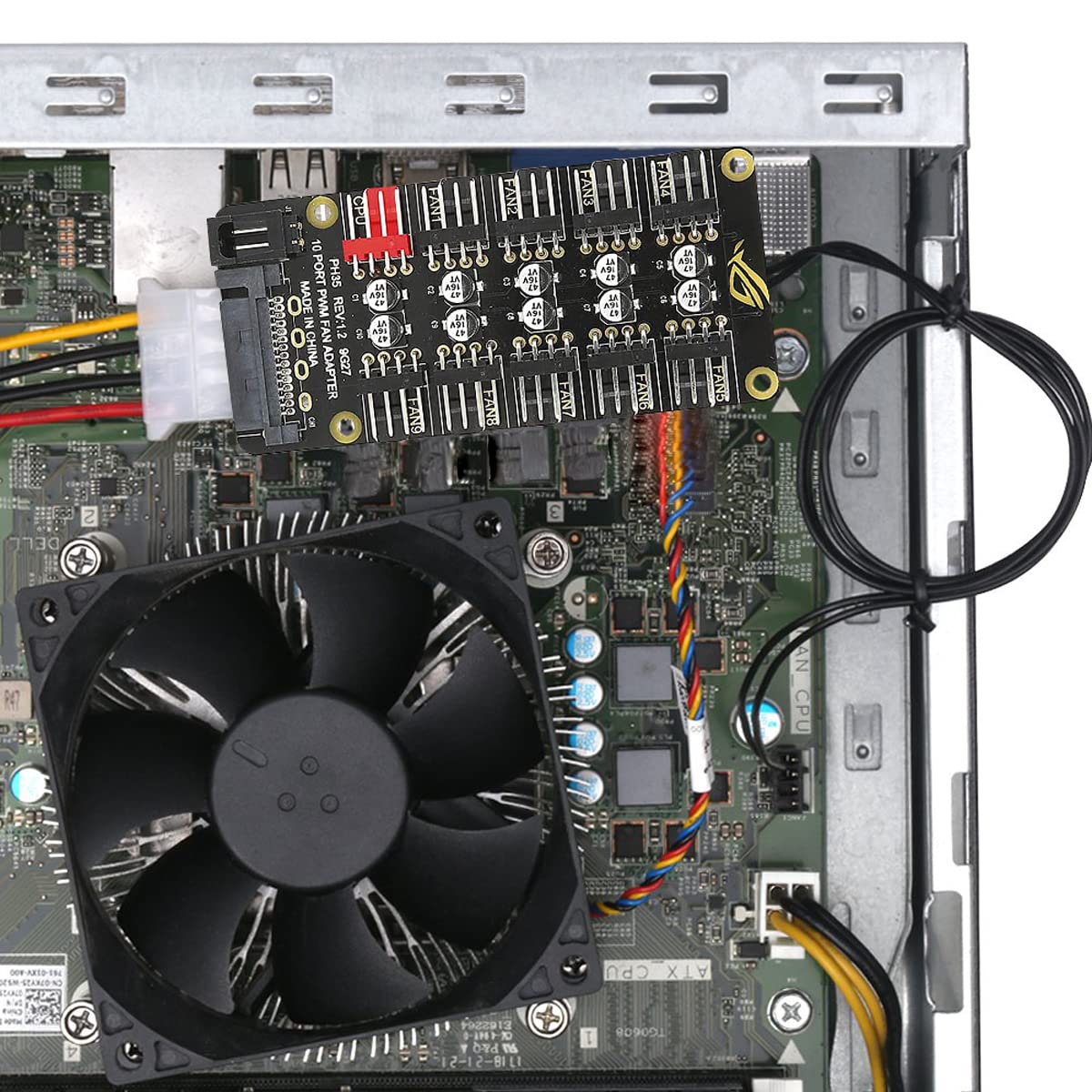

[EASY TO INSTALL]: There is EVA double-sided adhesive at the back of the hub, which can be easily affixed to a flat place. Also a fixing screw hole in the middle of the PCB to facilitate fixing to a part of the chassis. The fan splitter cable provide additional fan to increase airflow in your computer case. With 3 self adhesive 2mm EVA foam, easy to fixed and not easy to fall.
[OPERATION MODE]: RED is expected to be a pass through for the CPU fan. So, the hub has a power source fed from the computer power supply, then the speed is regulated by the speed for the “source” fan. You can connect to the CPU fan lead on the system board or the chassis fan lead. The ten fans will spin at the same speed, that designated by the system for that fan. If the chassis fan is configured in BIOS to run at 50%, you will have 10 fans at 50%.
